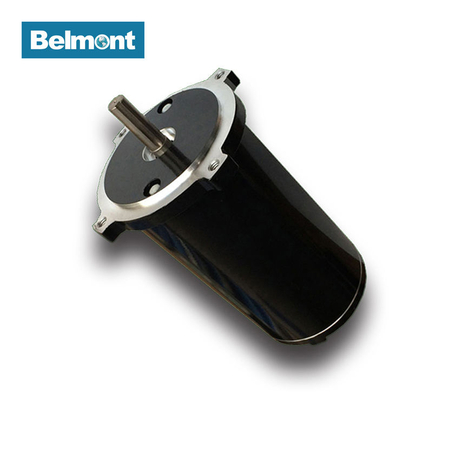

BMM-120ZYT 120mm High Speed High Torque 12V 24V 48V Electric DC Motor
Product Description
120mm high speed high torque 3000rpm 500W 12V 48V electric dc motor
Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device, precision equipment, etc.
Customized manufacturing available
| Model | VOLTAGE (VDC) | NO LOAD | RATED LOAD | TORQUE (Nm) | LENGTH (mm) | ||
CURRENT (A) | SPEED (r/min) | CURRENT (A) | SPEED (r/min) | ||||
BMM-120ZYT-1 | 12 | 5.76 | 1941 | 38.39 | 1650 | 2 | 222 |
BMM-120ZYT-2 | 48 | 1.44 | 1941 | 9.6 | 1650 | 2 | 222 |
BMM-120ZYT-3 | 12 | 5.1 | 2294 | 34.03 | 1950 | 1.5 | 183 |
BMM-120ZYT-4 | 12 | 2.09 | 941 | 13.96 | 800 | 1.5 | 183 |
BMM-120ZYT-5 | 12 | 8.64 | 3882 | 57.59 | 3300 | 1.5 | 183 |
BMM-120ZYT-6 | 24 | 2.75 | 2470 | 18.32 | 2100 | 1.5 | 199 |
BMM-120ZYT-7 | 12 | 9.16 | 2058 | 61.08 | 1750 | 3 | 284 |
BMM-120ZYT-8 | 12 | 8.64 | 1941 | 57.59 | 1650 | 3 | 284 |
We use reliable packaging and logistics, for customer to receive the products in good condition. Also, we could customize according to your requirements.
